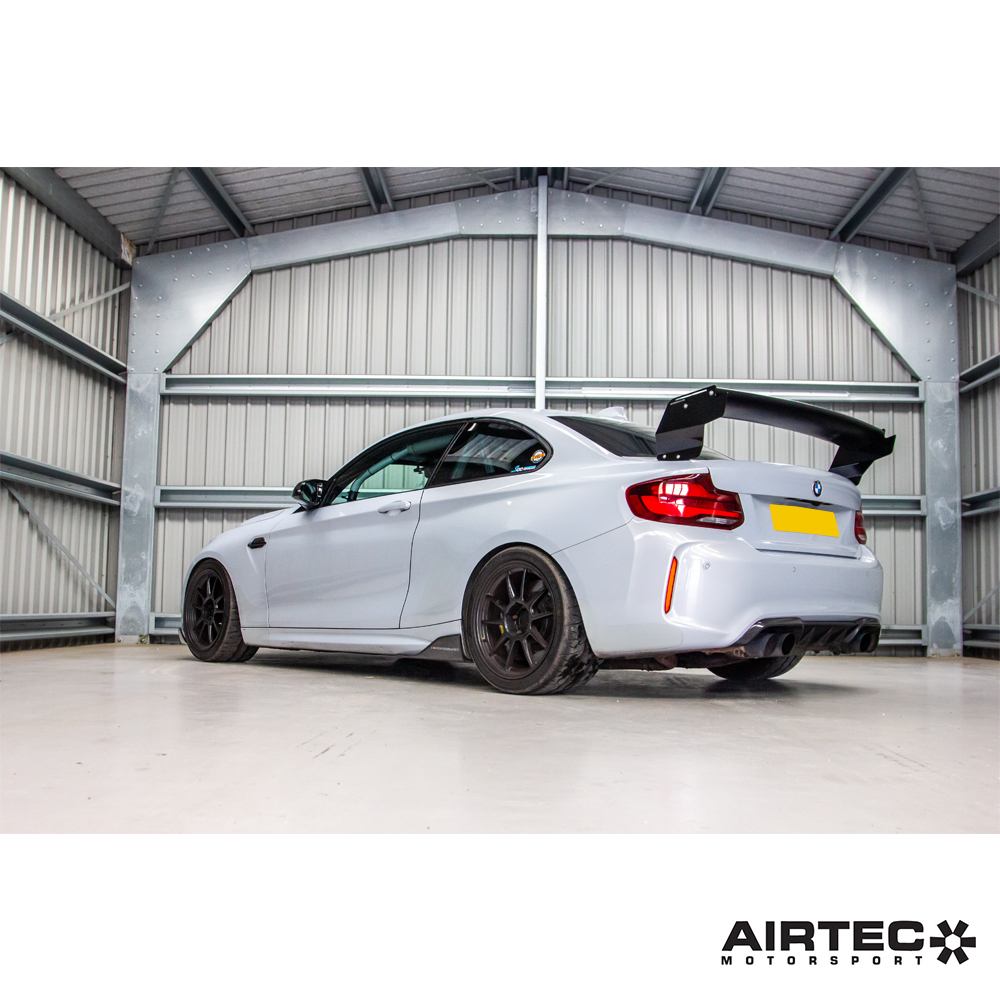

AIRTEC Motorsport Rear Wing for BMW M2 F87

Following an extensive development process by our in-house design engineer team, AIRTEC Motorsport is proud to launch our new rear wing kit for the BMW F22/F23 2-Series/F87 M2, suited to track or fast road use.

Several designs and variations were tried before we settled on this particular design, which has been designed to allow the car’s existing laminar flow to direct clean air under the aerofoil blade to produce a low pressure area, which will increase rear downforce and therefore stability at speed.

The Development
Eager to create an unrivalled product in this segment, we began with a 3D scan of the boot lid so we could design a CNC bracket that's mounting surface followed the gentle curvature of the boot lid. This was to ensure that when the bracket was fully tightened down it would not deform the boot lid, as you see in some cars fitted with these kinds of spoilers. We also chose to mount the bracket in an area that is double skinned for additional rigidity.

After trying other aerofoils, we also chose to develop a new longer aerofoil blade solely for this application.

The Design

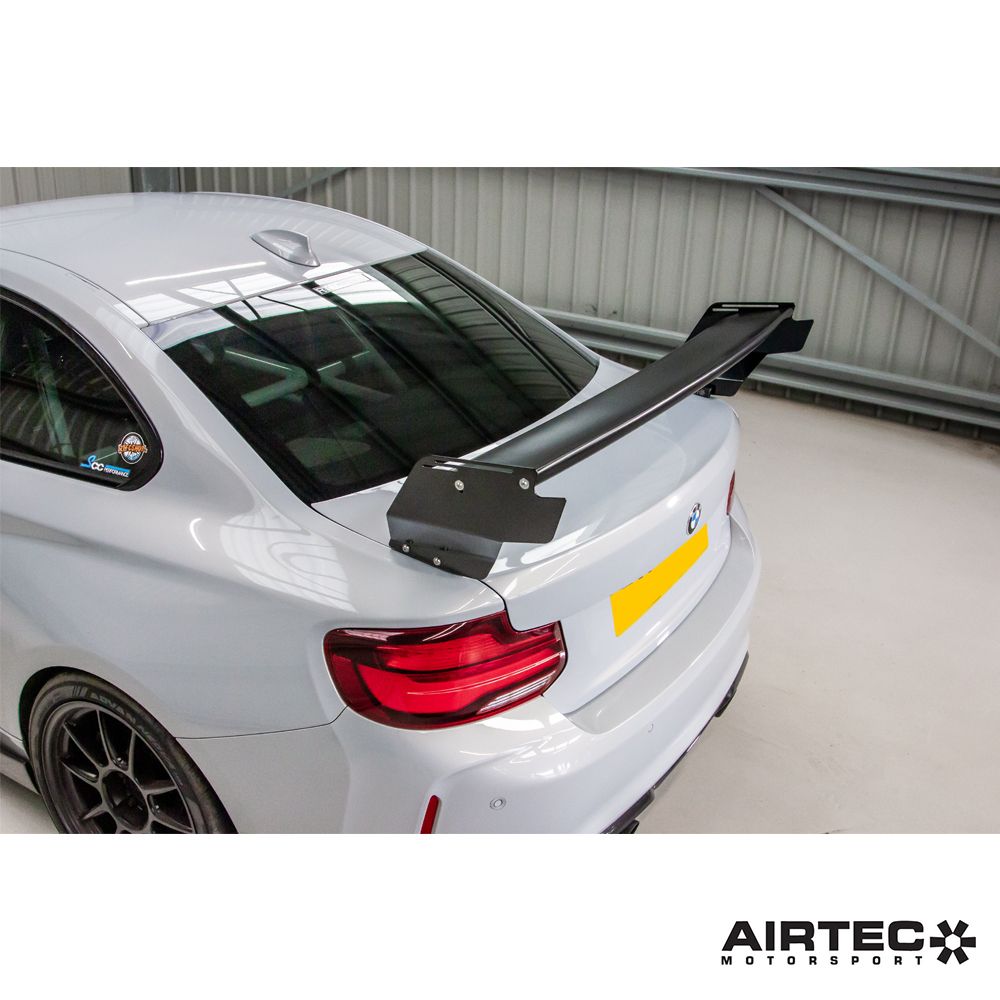

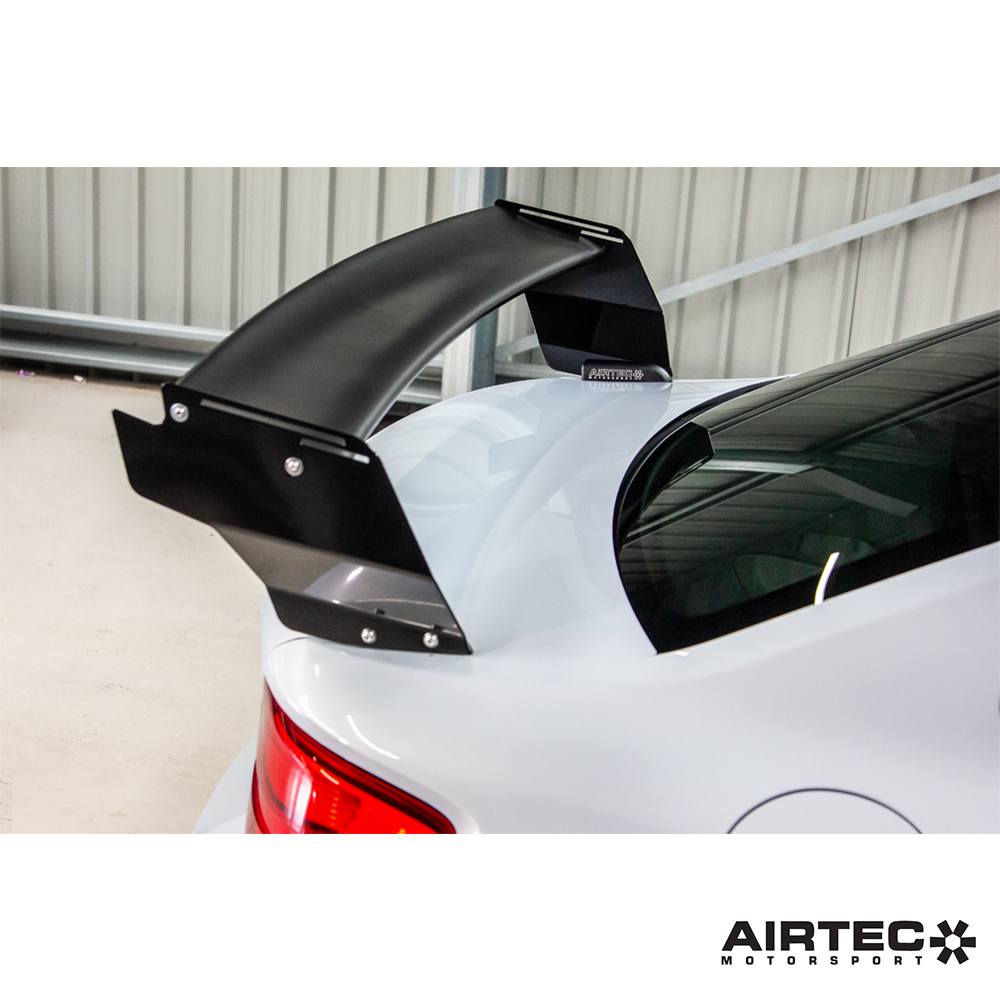

We made the decision early on to create end plates that would also serve as the uprights to mount the spoiler. This clever design allows the entire width of the aerofoil to work more efficiently, as all of the air passing under it is completely undisturbed, which is not possible with centre mounted uprights. The end plates are also adjustable to suit a preferred set up.

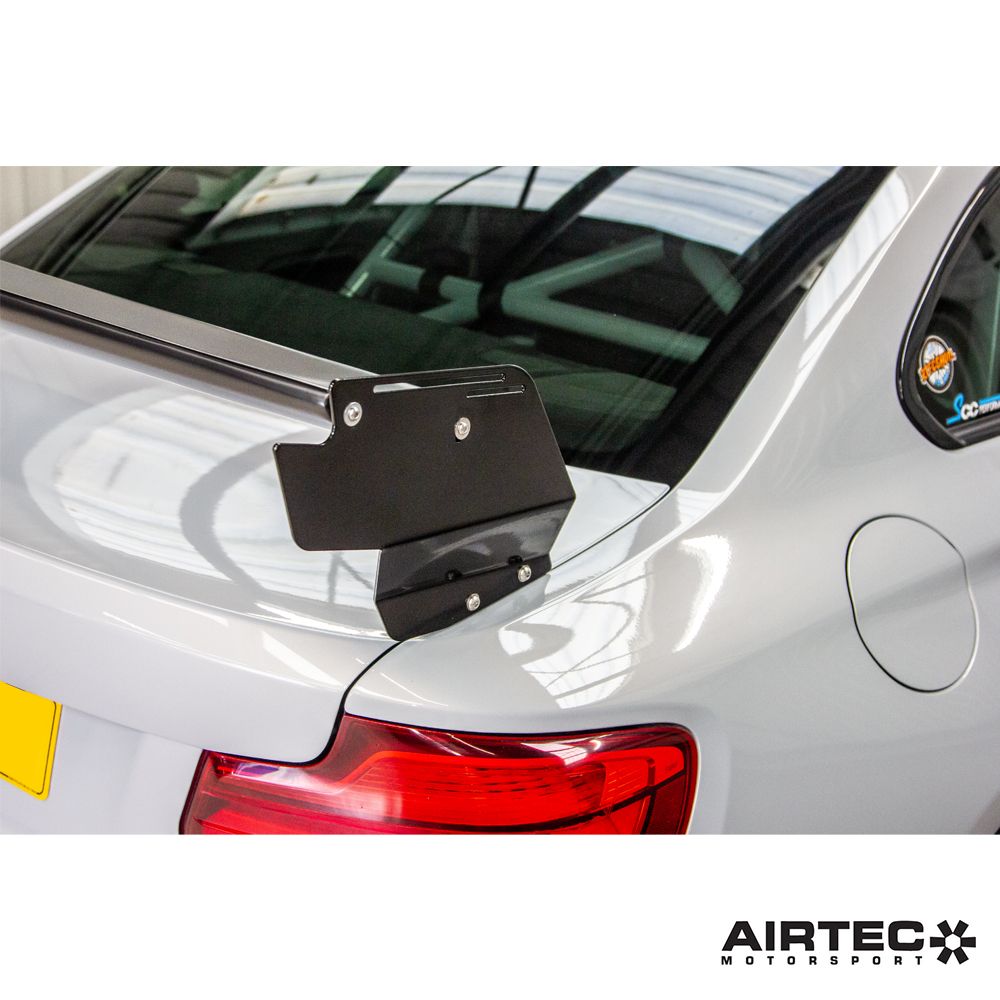

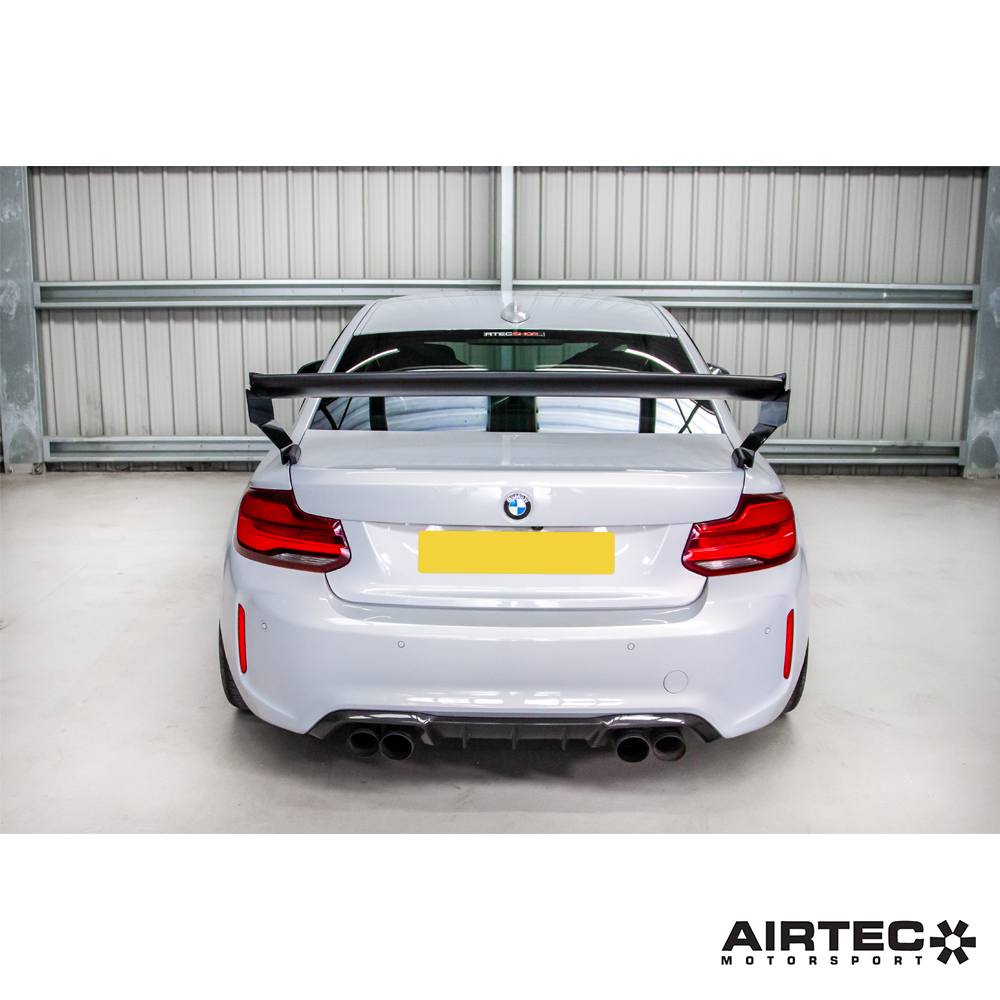

Whilst the wing design ensures its as wide as possible to allow as much clean air underneath it, it does not exceed past the car's width or height dimensions to adhere to Nürburgring Regulations and Motorsport Blue Book Regulations. It's also been designed to work with the original BMW lip spoiler (not pictured here). The mounting brackets are secured to the boot lid using six M6 bolts and once fitted, the fittings are all hidden from outside view. Please note: this does require drilling to the boot lid.

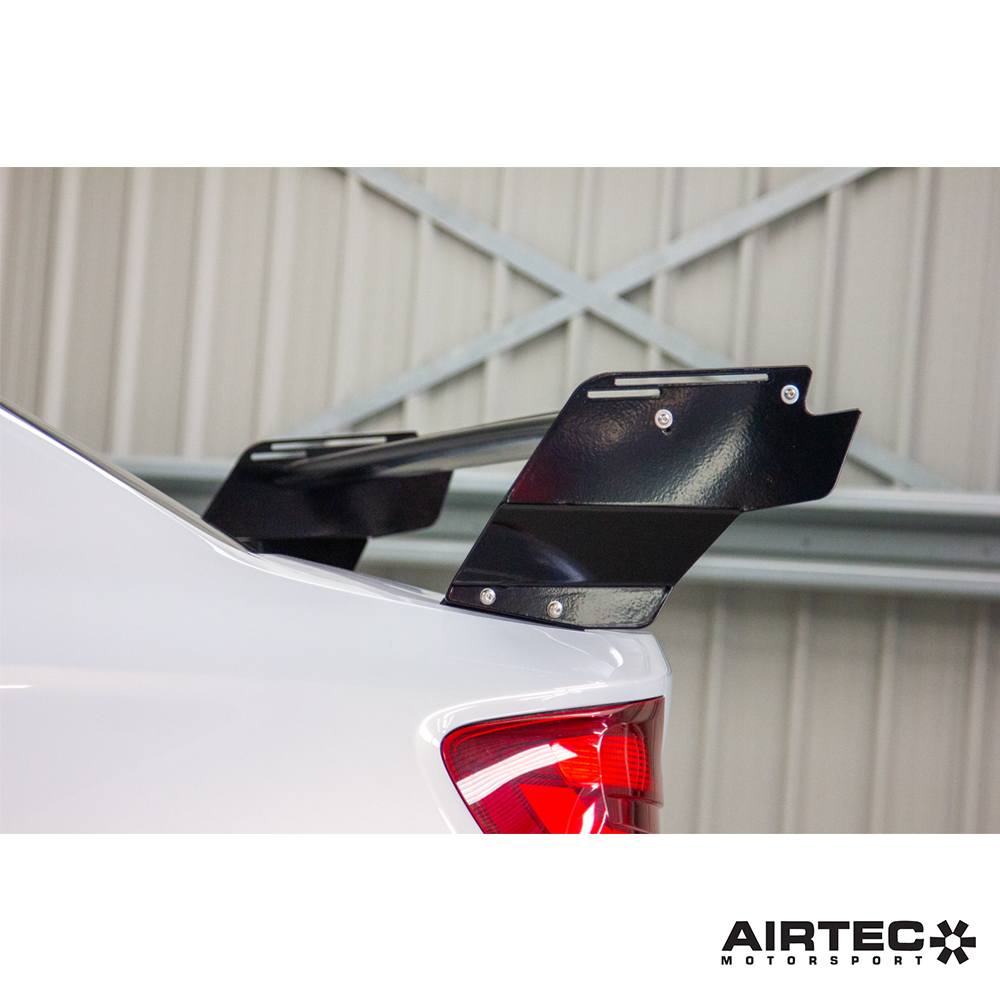

The kit features laser cut uprights in 3mm steel to ensure rigidity and are finished in a high-quality, satin black powder coat. The comprehensive kit also includes all fixtures and fittings, as well as detailed fitting instructions.

Features:

• Designed and developed specifically for the BMW F22/F23 2-Series/F87 M2

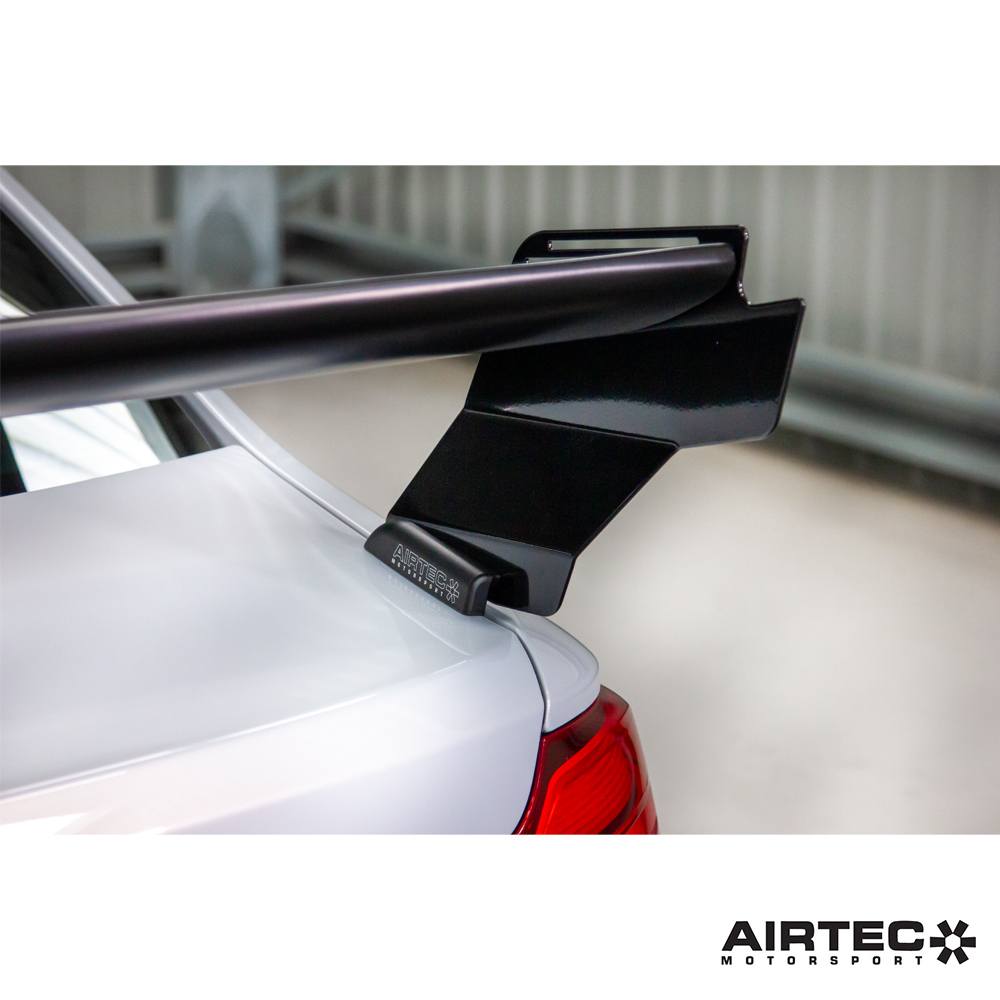

• CNC mounting brackets that follow the curve of the boot lid to avoid deformation

• Uprights work as the end plates to ensure the aerofoil works more efficiently

• Rigid fixings ensure the wing is fully supported

• High-quality black powder coated finish

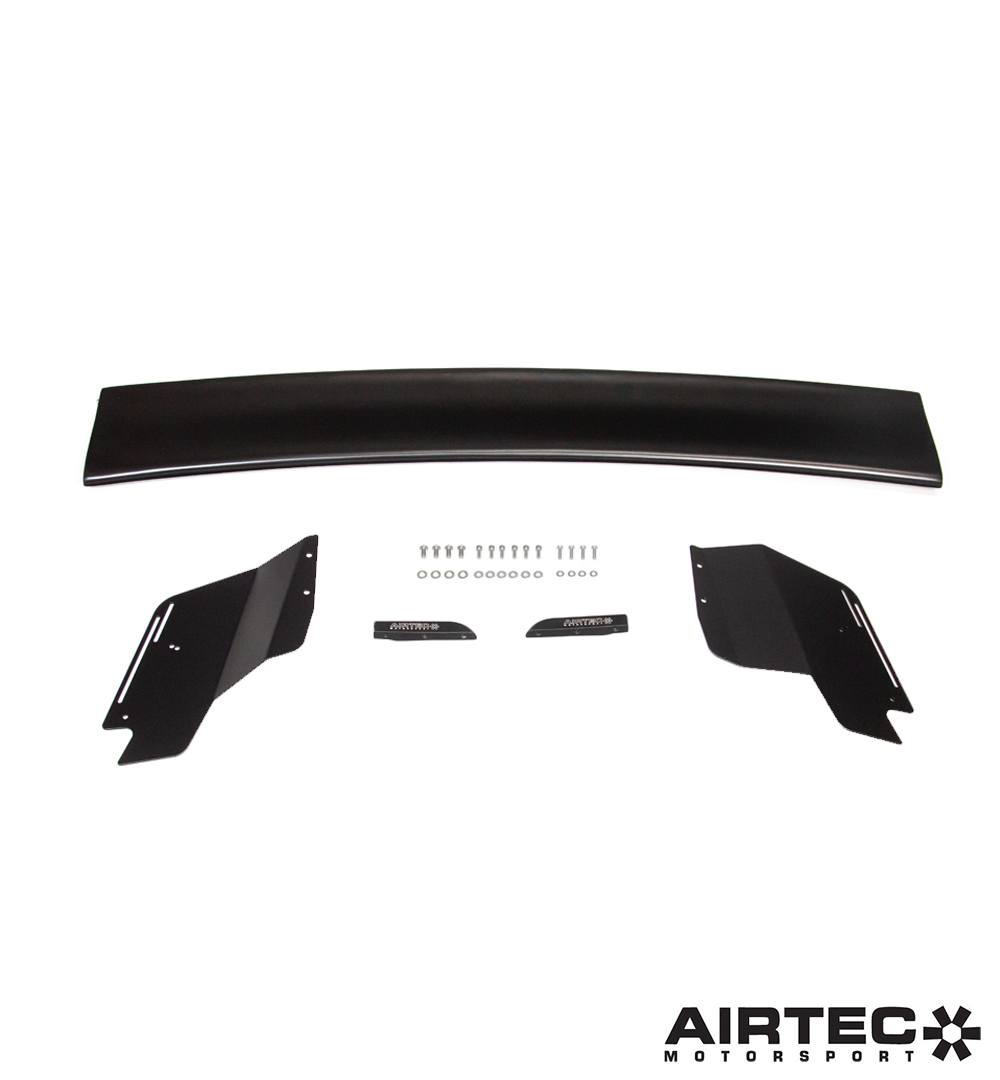

• Comprehensive fitting kit with all fixtures, fittings and detailed instructions



PLEASE NOTE:

• Drilling to the boot lid is required to fit this product.
• We endeavour to deliver an extremely high-quality product but due to the handmade manufacturing process there is the possibility of minor imperfections on the centre wing blade. Therefore the appropriate prepping and painting is recommended before fitting – or we can supply the blade prepped and painted before sending it for an additional cost.
• If using original boot catch which has movement please be careful when shutting as this can catch the top of the rear quarters.

Blade width 1365 wide.

 AIRTEC Part No: ATMSBMW21
