AIRTEC Motorsport Stage 2 Intercooler Upgrade for Citroen DS3

As part of our expanding Peugeot and Citroen product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the DS3 1.6 turbo to offer increased performance through reduced charge temperatures in comparison to the original intercooler. This is particularly important to remapped examples.

Our solution to improving the OEM intercooler set up within the confines behind the bumper assembly is based upon a high flow, single-pass core design, that’s wider, taller and deeper than the original. This offers a massive increase in frontal area and a huge increase in capacity, which allows it to make the most of the air flow provided. However, there is still plenty of air flow to the top section of the radiator, which is essential for hotter climate countries.

Together with our high-flow, moulded one-piece cast end tanks ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

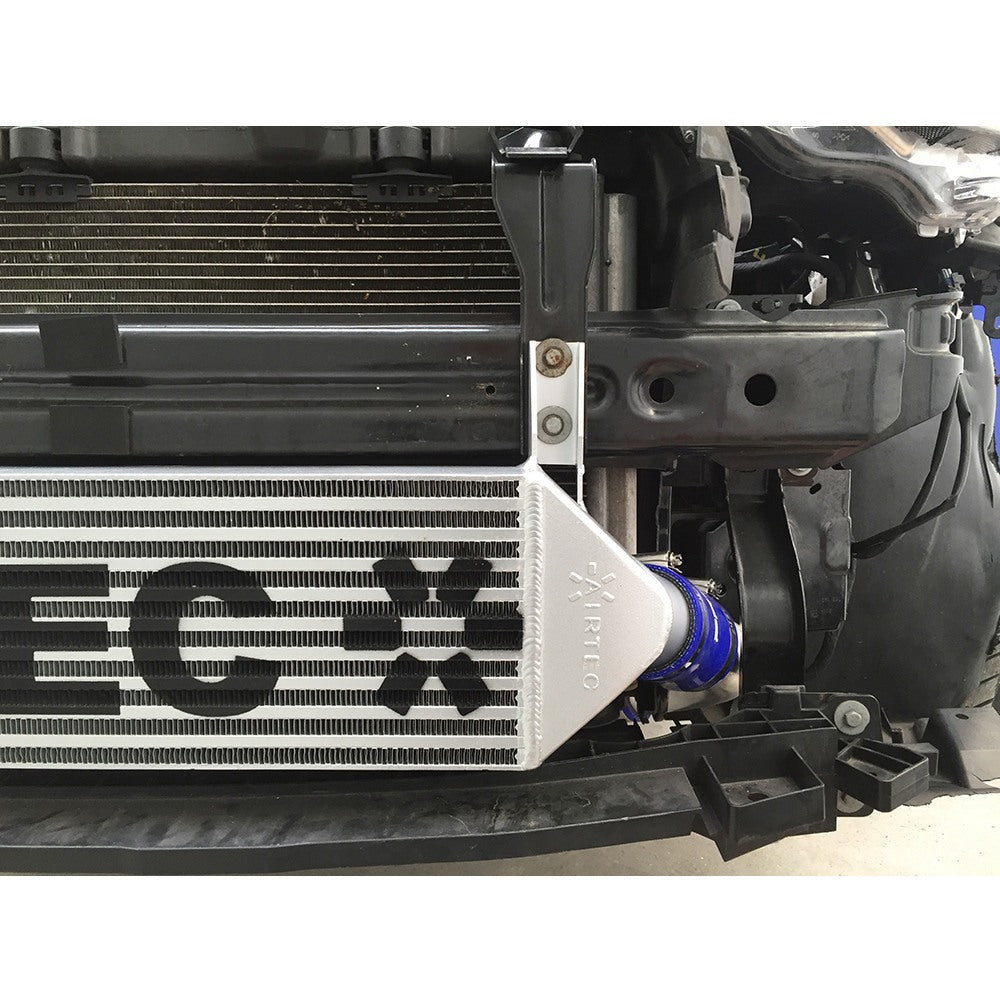

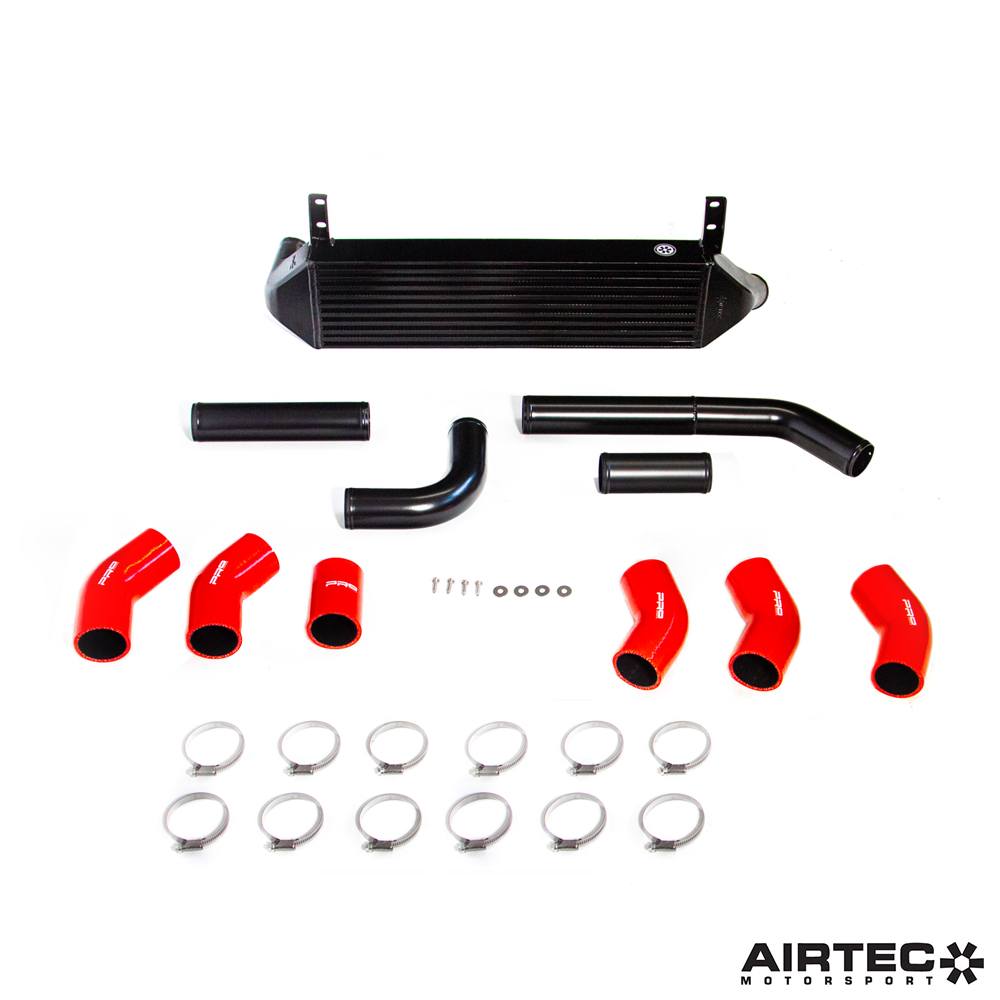

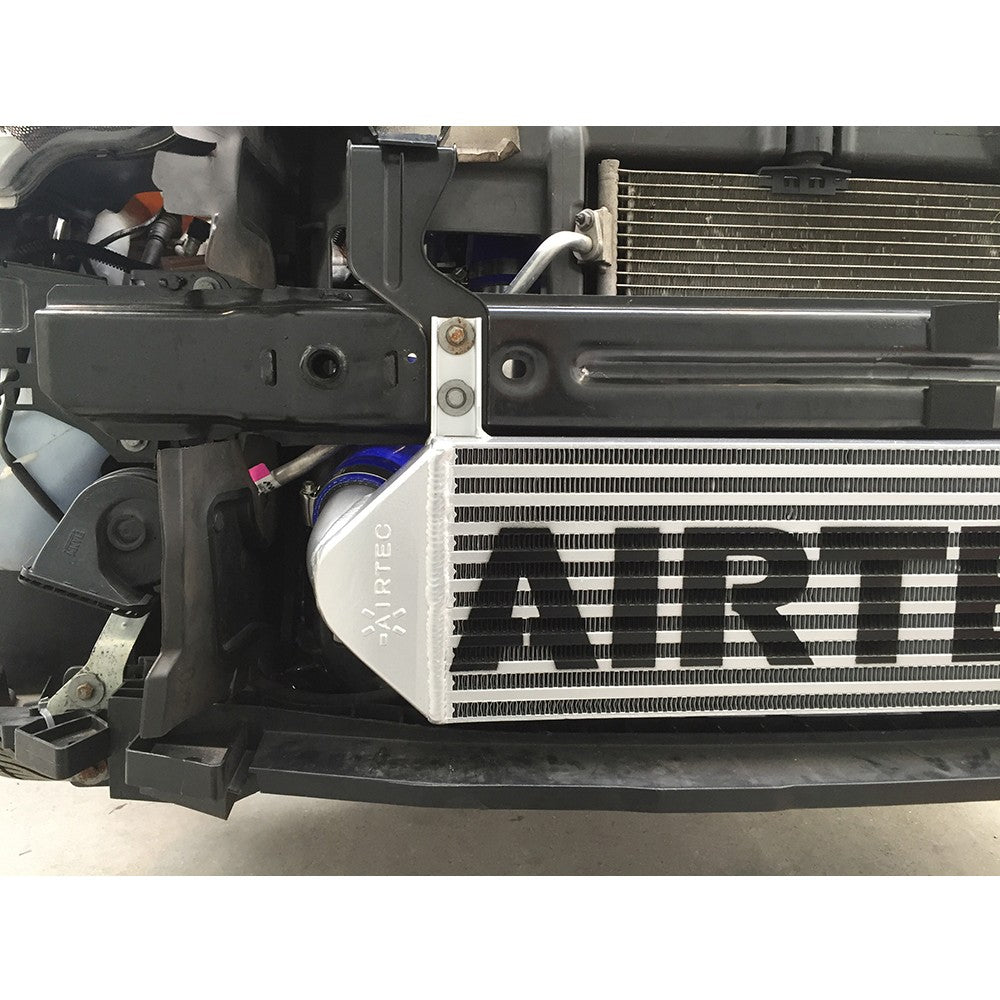

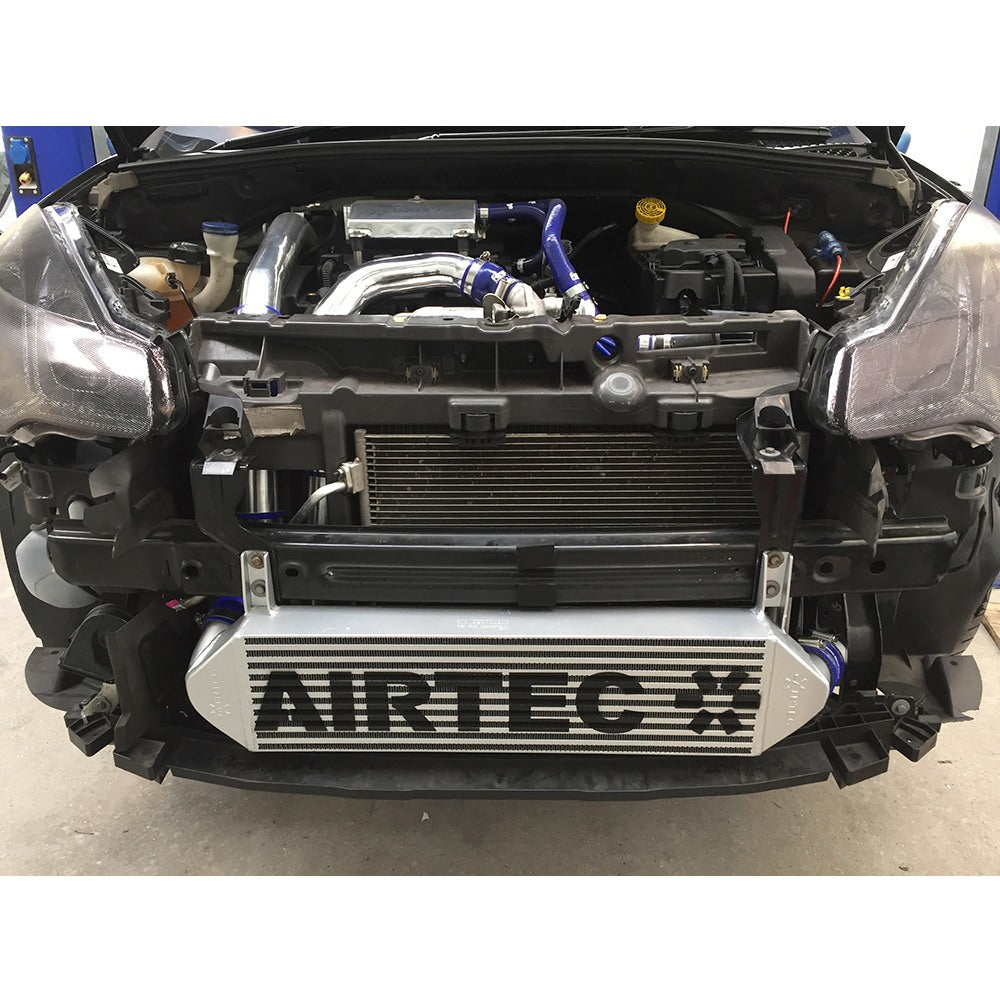

Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. The comprehensive fitting kit includes all the correct fixtures and fittings, step-by-step instructions with pictures and Pro Hoses silicone connectors.

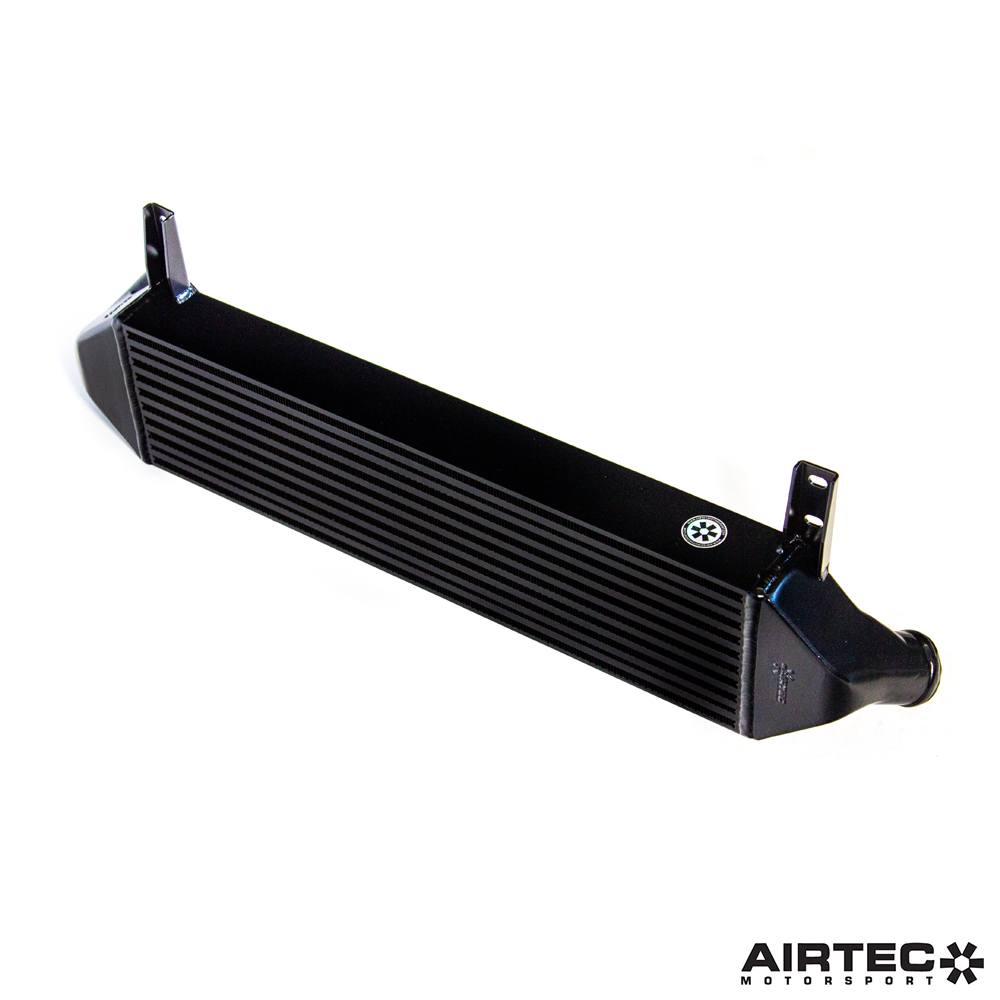

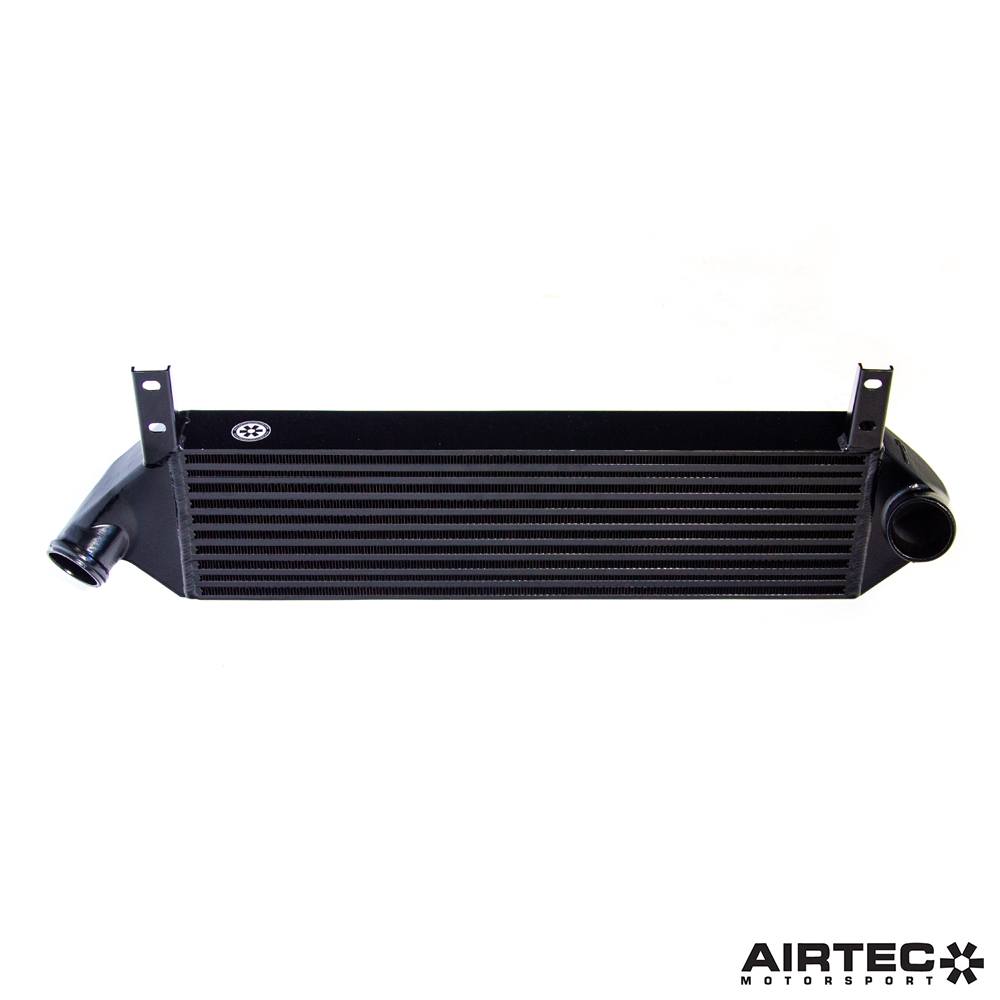

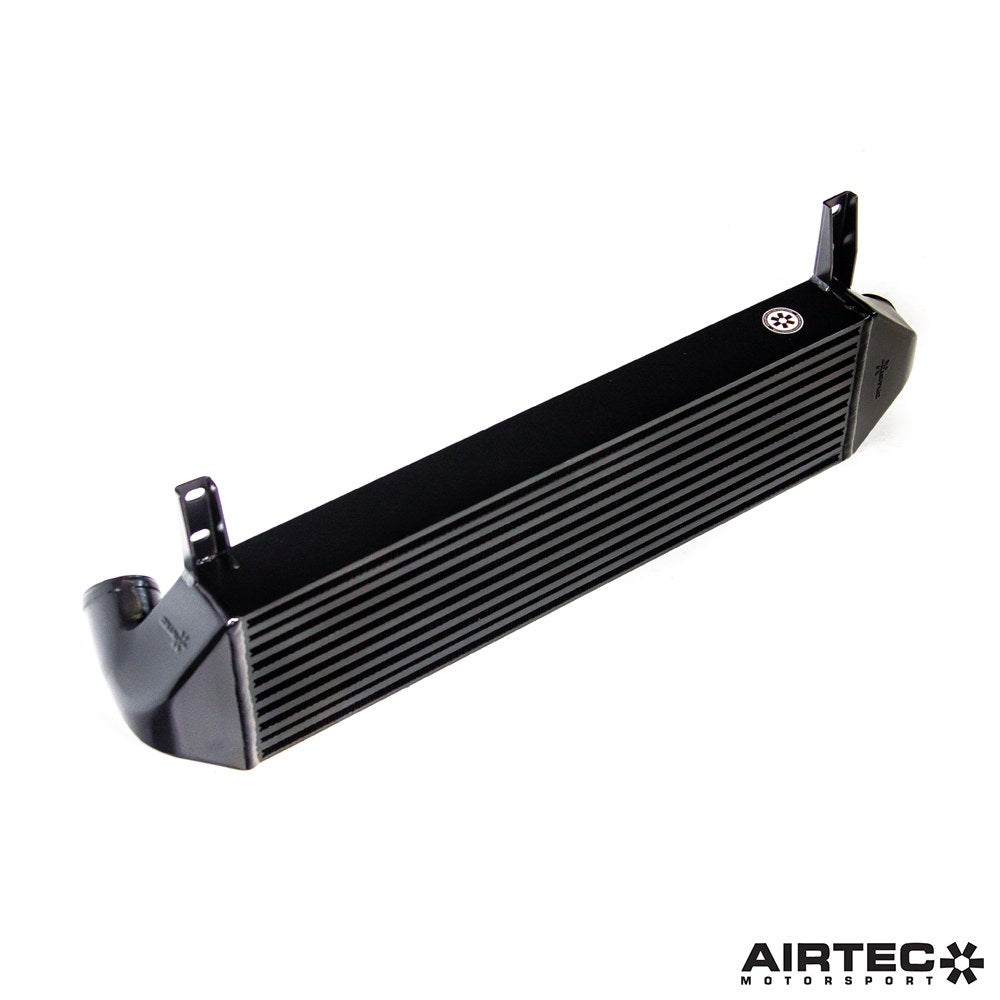

The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo).

TESTED
Rolling road tested at AmD Tuning in Essex. Test car fitted with Milltek cat back exhaust. sports cat, intake system and Stage 2 remap.

Standard Intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1
In – 166 degrees
Out – 99 degrees

Run 2
In – 191 degrees
Out – 109 degrees

AIRTEC Motorsport Intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1
In – 144 degrees
Out – 37 degrees

Run 2
In – 165 degrees
Out 42 degrees

Run 3
In – 170 degrees
Out – 46 degrees

On average, the AIRTEC Motorsport intercooler saw an increase of 11bhp over the standard intercooler.

Dimensions
Width: 760mm
Height: 175mm
Depth: 60mm
Capacity: 7.9 litres
Frontal area: 1,330cm²

PLEASE NOTE: This fits both pre- and post-facelift models. However allow more time to fit for face-lifted models as the bumper requires the foam insert to be removed and the intercooler brackets adapted to suit.


Features

• Specifically designed for the DS3 platform
• Tried and tested core design that’s proven to work
• Huge increase in cooling ability
• High-flow cast end tanks
• Pro Hoses silicone boost pipes included
• Powder coated black finish
• Includes fittings and fixtures
• Detailed fitting guide included

AIRTEC part no: ATINTP&C6
